Introducing the BIOSTAR B850MS-E: A Versatile AMD B850 Motherboard for Modern Computing

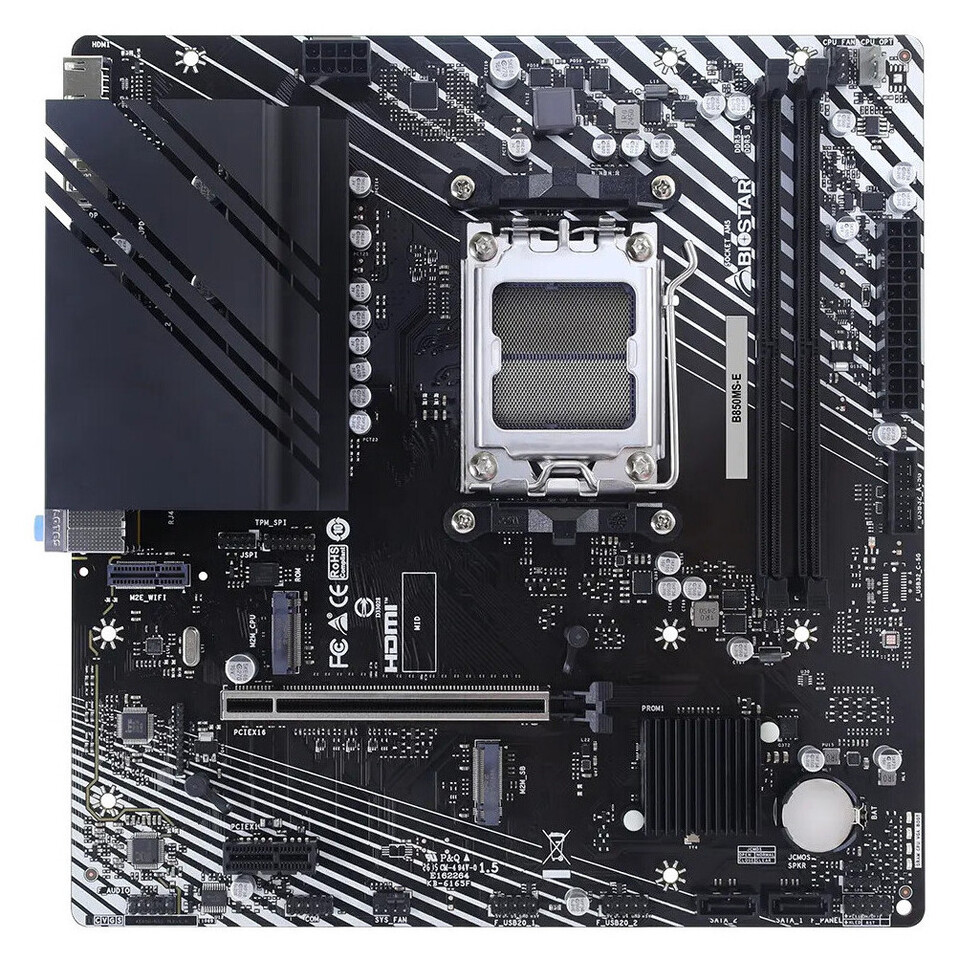

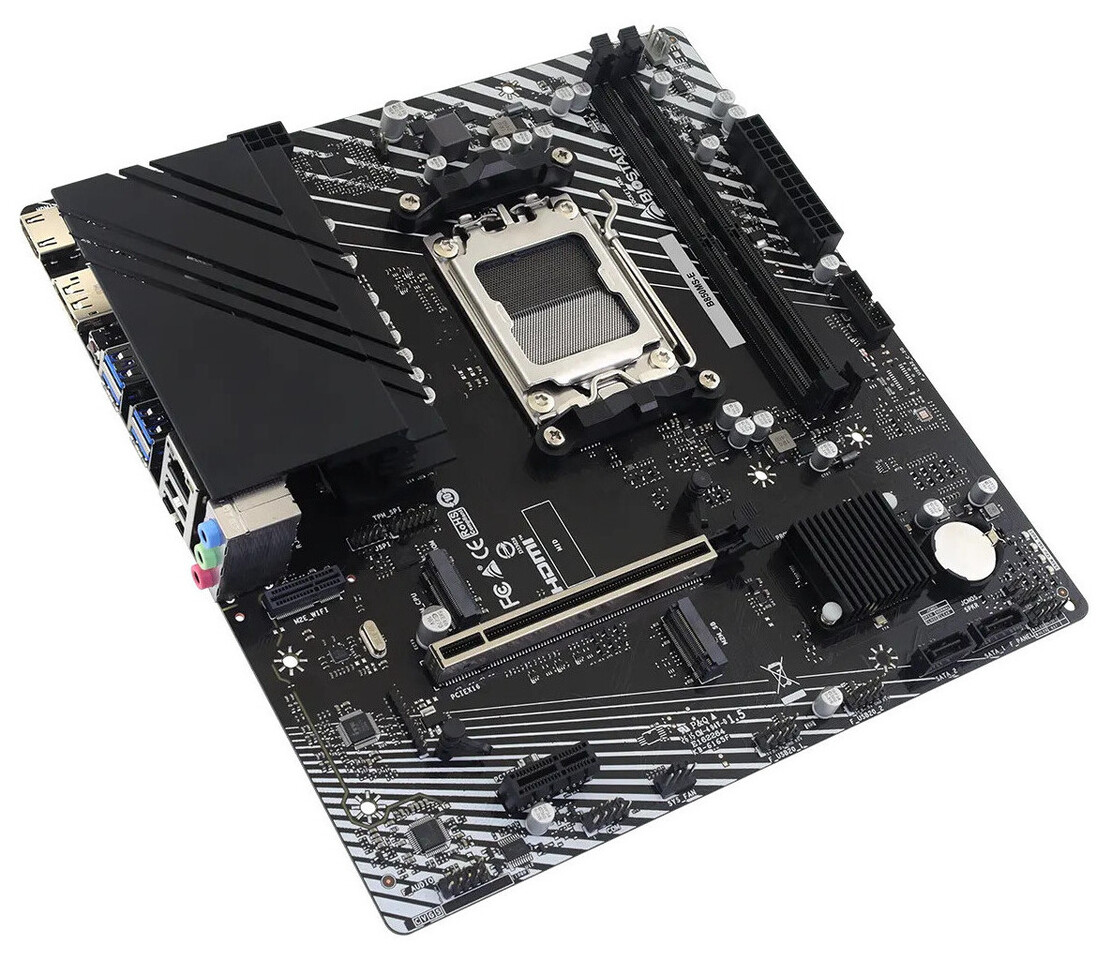

BIOSTAR has unveiled the B850MS-E motherboard, a feature-rich AMD B850 platform engineered to meet the demands of productivity, home entertainment, and commercial system integration. Designed for mainstream AMD Socket AM5 builds, the B850MS-E brings together advanced technologies such as DDR5 memory, PCIe 5.0 M.2 storage, and Wi-Fi 7 readiness in a compact Micro ATX form factor.
Comprehensive Support for AMD Ryzen Processors
The B850MS-E is compatible with AMD Ryzen 9000, 8000, and 7000 series processors, and is prepared for future Ryzen CPUs through BIOS updates. This ensures a robust and future-proof foundation for users seeking reliable performance across a range of applications, from office productivity to multimedia streaming and business deployments.
High-Speed DDR5 Memory and Enhanced Multitasking
Supporting up to 128 GB of dual-channel DDR5 memory at speeds of DDR5-8000+ (OC) via two DIMM slots, the B850MS-E delivers significant improvements in bandwidth and energy efficiency over previous DDR4 platforms. Compatibility with both Intel XMP and AMD EXPO memory profiles allows users to optimize memory performance for smoother multitasking and demanding workloads.
Optimized for Home Entertainment and HTPC Builds
The B850MS-E is well-suited for home theater PCs and entertainment systems, featuring both HDMI and DisplayPort outputs for high-resolution visuals. Paired with Realtek ALC897 7.1-channel Hi-Fi audio, users can enjoy immersive sound for streaming, movies, music, and casual gaming. Its Micro ATX dimensions (23.5 × 24.4 cm) make it ideal for compact living room setups or space-saving workstations.
Reliable Platform for Business and System Integration
For commercial environments, the B850MS-E offers a stable and up-to-date platform for business workstations, office terminals, and customer-facing systems. RAID support for both SATA (RAID 0, 1, 10) and NVMe (RAID 0, 1) storage provides flexible data management and redundancy options. A dedicated TPM header enhances system security, making the motherboard suitable for Windows 11-ready deployments. Integrated Realtek Gigabit LAN ensures dependable wired networking for office and commercial use.
Dual M.2 Storage with PCIe 5.0 Performance
At the heart of the B850MS-E is a dual M.2 storage architecture. The primary PCIe 5.0 x4 M.2 slot connects directly to the CPU, enabling support for the latest high-speed NVMe SSDs. A secondary PCIe 4.0 x4 M.2 slot, powered by the AMD B850 chipset, offers additional storage flexibility. This setup allows users to combine a fast PCIe 5.0 boot drive with a larger secondary drive for games, media, and daily tasks, resulting in faster boot times, improved file transfers, and enhanced overall system responsiveness.
User-Friendly Features and Intelligent System Optimization
The B850MS-E incorporates practical design elements such as a Debug LED for quick hardware diagnostics, an M.2 Anchor for easy SSD installation, and a SMART BIOS UPDATE button with a dedicated USB port for seamless BIOS updates. These features simplify system setup, maintenance, and future upgrades.

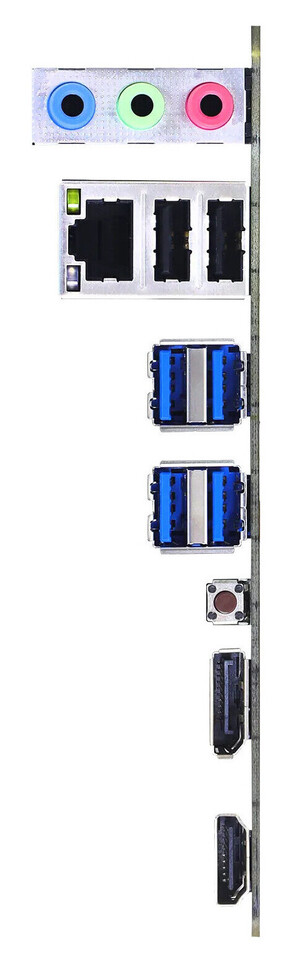

For connectivity, the motherboard offers multiple USB 3.2 Gen 1 ports (up to 5 Gbps), both on the rear I/O and via internal headers, along with six USB 2.0 ports for legacy devices. Wi-Fi 7 and Wi-Fi 6E module support (modules not included) enables tri-band wireless networking across 2.4 GHz, 5 GHz, and 6 GHz frequencies, delivering faster speeds, lower latency, and stable connections for multiple devices.
BIOSTAR’s intelligent system optimization tools further enhance usability. A.I. FAN automatically adjusts fan speeds based on system temperature for optimal cooling and energy efficiency, while A.I. TP Control provides a user-friendly BIOS interface for convenient system tuning and performance adjustments.
Conclusion: A Feature-Rich Motherboard for Work, Entertainment, and Business
With support for the latest AMD Ryzen processors, high-speed DDR5 memory, dual M.2 storage with PCIe 5.0, advanced connectivity options, and a suite of user-focused features, the BIOSTAR B850MS-E stands out as a reliable and versatile motherboard. It is well-equipped to handle the needs of office productivity, home entertainment, and commercial system integration, making it a strong choice for modern PC builds.
